Connecting services to Restate Cloud

Learn how to connect your services to Restate Cloud.

When using Restate Cloud, you can run your services anywhere: on Kubernetes, as serverless functions, on AWS Lambda, or in private environments. The only requirement is that your services need to be reachable from Restate Cloud’s infrastructure.

You can connect your services to Restate Cloud in several ways, depending on where they run:

• Connect Kubernetes services via a secure tunnel with Restate Operator.
• Connect serverless functions (Vercel, Cloudflare Workers, Deno Deploy, etc.) or other public endpoints, by signing requests with your cloud environment’s public key.
• Connect AWS Lambda functions, by granting Restate Cloud permission to assume a role in your AWS account.
• Connect services in private environments, by setting up a tunnel.

If you prefer a video walkthrough, check out this webinar on getting started with cloud:

Kubernetes services

You can connect your Kubernetes services to Restate Cloud using a secure tunnel provided by the Restate Operator.

This allows you to run your services inside a private Kubernetes cluster without exposing them to the public internet.

The operator will:

• Establish a tunnel to Restate Cloud
• Register your services automatically
• Manage multiple deployment revisions
• Scale down old revisions when no longer needed

Try connecting a greeter service on a local kind Kubernetes cluster to Restate Cloud by following this guide.

Operator deployment

Install the Restate Operator via Helm:

helm install restate-operator \
  oci://ghcr.io/restatedev/restate-operator-helm \
  --namespace restate-operator \
  --create-namespace

To install the operator, you need to be able to create namespaces and CRDs.

Create a Restate Cloud secret

Create an API key via Developers tab of the Restate Cloud UI and give it Full permissions. The API key starts with key_. Save it in a file named token and create the secret in Kubernetes:

kubectl create secret generic my-cloud-environment-secret \
  --from-file=token=./token -n restate-operator

Set up a secure tunnel

Set up a secure tunnel between the Kubernetes cluster and Restate Cloud with the RestateCloudEnvironment CRD:

apiVersion: restate.dev/v1beta1
kind: RestateCloudEnvironment
metadata:
  name: my-cloud-environment
spec:
  environmentId: env_...
  signingPublicKey: publickeyv1_...
  region: eu
  authentication:
    secret:
      name: my-cloud-environment-secret
      key: token

• The environmentId can be found in the Restate Cloud UI in the top left corner when you select your environment. This ID starts with env_.

• The signingPublicKey can be found in the Restate Cloud UI under Developers. Scroll down to the Security section to find the public key under HTTP endpoints. The public key starts with publickeyv1_.

• Set the region field to the region your Restate Cloud environment is hosted in. Possible values are us and eu. You can find the region next to your environment ID in the Restate Cloud UI.

To see all the available configuration options for the RestateCloudEnvironment resource, refer to the Custom Resource Definition (CRD): Pkl (recommended) or YAML.

Learn more about how the tunnel works below.

Create your RestateDeployment

Create a RestateDeployment manifest for your service, as described in the deployment documentation, and specify the cloud environment to register with in the spec:

spec:
  restate:
    register:
      cloud: my-cloud-environment

Once you apply the manifest, the Restate Operator will set up the secure tunnel and automatically register your service with Restate Cloud.

Serverless Functions and other public endpoints

Restate can invoke your services over the public internet. This is useful if you are deploying your services as serverless functions, e.g. on Vercel, Cloudflare Workers, or Deno Deploy. You can also securely deploy Restate services you operate as directly reachable endpoints.

For AWS Lambda, please see the AWS Lambda functions section below.

It is important to secure access to your publicly routable services so that only the designated Restate environment can call them. The easiest way to do this is with Restate’s native request identity feature. All requests to your service will be signed with a unique environment-specific private key.

You can find your cloud environment’s public key in the Cloud UI’s Developers tab under Security -> HTTP Services. Since it is not secret, it is safe to include the public key directly in your service source code or configuration files:

TypeScript

restate.serve({
  services: [myService],
  identityKeys: ["publickeyv1_w7YHemBctH5Ck2nQRQ47iBBqhNHy4FV7t2Usbye2A6f"],
});

You can find more information on how to deploy Restate to various serverless platforms in the following guides:

• Vercel
• Cloudflare Workers
• Deno Deploy

Note that, if you are using public endpoints, HTTPS must be used between Restate and your services. Consider using a load balancer like AWS Network Load Balancer which handles TLS termination. For optimum performance, the load balancer in front of your services must support HTTP/2.

AWS Lambda functions

Restate Cloud can securely invoke your AWS Lambda functions by assuming an AWS role which you manage, and has appropriate permissions to invoke the relevant functions.

Setting up the invoker role

Restate Cloud must be able to assume an AWS role with permission to perform lambda:InvokeFunction, within the same AWS account where the Lambda function is deployed. As Restate Cloud is a multi-tenant system, the role must be set up to only allow specifically enumerated Restate Cloud environment(s) you trust to assume it.

Note that the Restate Cloud role is separate from your Lambda function’s execution role. The execution role is used by your function to perform its tasks, while the invoker role grants Restate Cloud permission to invoke your service handler functions — and nothing else.

You can set up the role directly in IAM or use an infrastructure-as-code tool such as AWS CDK to define it.

IAM trust policy for Restate Cloud

To create a new IAM role, you can copy the trust policy directly from the Restate Cloud UI, by visiting Developers > Security > AWS Lambda. The trust policy allows the Restate Cloud IAM identity to assume the invoker role, only on behalf of the specified environment ID.

Using AWS CDK

You can use AWS CDK together with the Restate CDK construct library to deploy Lambda handlers, manage the invoker role, and automatically register Lambda-backed services with a Restate (Cloud) environment.

Here is an example CDK stack that deploys a Lambda function and registers it with Restate Cloud:

import * as cdk from "aws-cdk-lib";
import * as lambda from "aws-cdk-lib/aws-lambda";
import * as secrets from "aws-cdk-lib/aws-secretsmanager";
import path from "path";

import { EnvironmentId, RestateCloudEnvironment, ServiceDeployer } from "../../../lib/restate-constructs";

const app = new cdk.App();
const stackName = app.node.tryGetContext("stack_name") ?? "e2e-RestateCloud";
const stack = new cdk.Stack(app, stackName, {
  env: {
    account: process.env.CDK_DEFAULT_ACCOUNT,
    region: process.env.CDK_DEFAULT_REGION,
  },
});

if (!process.env.RESTATE_ENV_ID || !process.env.RESTATE_API_KEY) {
  throw new Error("Please set RESTATE_ENV_ID and RESTATE_API_KEY");
}

const handler: lambda.Function = new lambda.Function(stack, "Service", {
  runtime: lambda.Runtime.NODEJS_LATEST,
  code: lambda.Code.fromAsset("../handlers/dist/"),
  handler: "bundle.handler",
});

const environment = new RestateCloudEnvironment(stack, "CloudEnv", {
  environmentId: process.env.RESTATE_ENV_ID! as EnvironmentId,
  apiKey: new secrets.Secret(stack, "RestateCloudApiKey", {
    secretStringValue: cdk.SecretValue.unsafePlainText(process.env.RESTATE_API_KEY!),
  }),
});

const deployer = new ServiceDeployer(stack, "ServiceDeployer", {
  code: lambda.Code.fromAsset(path.join(__dirname, "../../../dist/register-service-handler")),
  removalPolicy: cdk.RemovalPolicy.DESTROY,
});

deployer.deployService("Greeter", handler.currentVersion, environment);

new cdk.CfnOutput(stack, "RestateIngressUrl", { value: environment.ingressUrl });

app.synth();

View on GitHub

• The RESTATE_ENV_ID can be found in the Restate Cloud UI in the top left corner when you select your environment. This ID starts with env_.

• For the RESTATE_API_KEY, create an API key via Developers tab of the Restate Cloud UI and give it Full permissions.

The RestateCloudEnvironment automatically creates an IAM role with an appropriate trust policy for the matching Restate Cloud environment. The ServiceDeployer construct automatically grants this role permission to invoke any AWS Lambda functions registered with the environment. For more details, consult the relevant Restate CDK constructs’ API documentation.

Register your Lambda function

Once you have created the invoker role, you can register your Lambda-backed service(s) with your Restate environment by specifying the role to be assumed:

restate deployments register <LAMBDA_FUNCTION_ARN> --assume-role-arn <ROLE_ARN>

If something isn’t working, the environment logs in the Cloud UI may help you find the issue.

Securing your services:

If your Lambda has an appropriate trust policy as described above, you do not need to secure incoming requests any further. If you choose to however, the identity verification checks will work on Lambda endpoints as well.

Services in private environments

You can connect services that run in a locked-down private environment to Restate Cloud using a secure tunnel. This allows you to expose your services to Restate Cloud without opening up ports to the public internet. The tunnel will also act as an authenticating proxy to Restate Cloud and make it appear as if your Restate Cloud environment is inside your private network. This allows you to use native access control mechanisms, like VPC Security Groups and Kubernetes network policies, to manage access to your Cloud environment. It also lets you control connections from the Cloud environment to the rest of your network by restricting which internal services the tunnel client can connect to.

Set up a secure tunnel

The tunnel can be hosted as a cloud VM in your VPC, a sidecar to your service, or a dedicated pod in your container orchestrator.

You can deploy multiple copies for redundancy.

To run the tunnel:

# export RESTATE_ENVIRONMENT_ID=env_...
# export RESTATE_BEARER_TOKEN=key_...
# export RESTATE_TUNNEL_NAME=test-tunnel
# export RESTATE_SIGNING_PUBLIC_KEY=publickeyv1_...
# export RESTATE_CLOUD_REGION=eu

docker run \
  -e RESTATE_ENVIRONMENT_ID \
  -e RESTATE_BEARER_TOKEN \
  -e RESTATE_TUNNEL_NAME \
  -e RESTATE_SIGNING_PUBLIC_KEY \
  -e RESTATE_CLOUD_REGION \
  -p 8080:8080 \
  -p 9090:9090 \
  -p 9070:9070 \
  -it ghcr.io/restatedev/restate-cloud-tunnel-client:latest

Environment variables

• RESTATE_ENVIRONMENT_ID is the environment id (including the env_ prefix).
• RESTATE_BEARER_TOKEN is the API key you created in step 1.
• RESTATE_TUNNEL_NAME is a name for the tunnel. Choose a unique DNS-friendly tunnel name, e.g. prod-tunnel.
• RESTATE_SIGNING_PUBLIC_KEY is the public key you copied from the Cloud UI in step 1.
• RESTATE_CLOUD_REGION is the region of your Restate Cloud environment, e.g. eu or us.
• You can run latest or pin the current version, e.g. 0.4.0
• The health check URL is at :9090/health

Tunnel ports

The tunnel client exposes the following ports

• 9090 tunnel’s own health status
• 8080 Restate Ingress (authenticating proxy)
• 9070 Restate Admin API (authenticating proxy)

Learn more about how the tunnel works below.

Register your service

If your setup is correct, you can now register your service with the Restate Cloud environment:

restate deployments register https://tunnel.<cloud-region>.restate.cloud:9080/<no-prefix-env-id>/<tunnel-name>/http/<remote-fqdn>/<remote-port>

• Use just the numeric environment id here (without the env_ prefix).
• The tunnel name must match the name provided to the tunnel client
• The remote fqdn and port must resolve to the Restate service endpoint (e.g. localhost:9080) from the perspective of the tunnel client

For example, if your service is running on localhost:9080 and your environment id is env_20d1231jyphzkm8 in region eu, you can register it like this:

restate deployments register https://tunnel.eu.restate.cloud:9080/20d1231jyphzkm8/test-tunnel/http/localhost/9080

You can now invoke your service as usual.

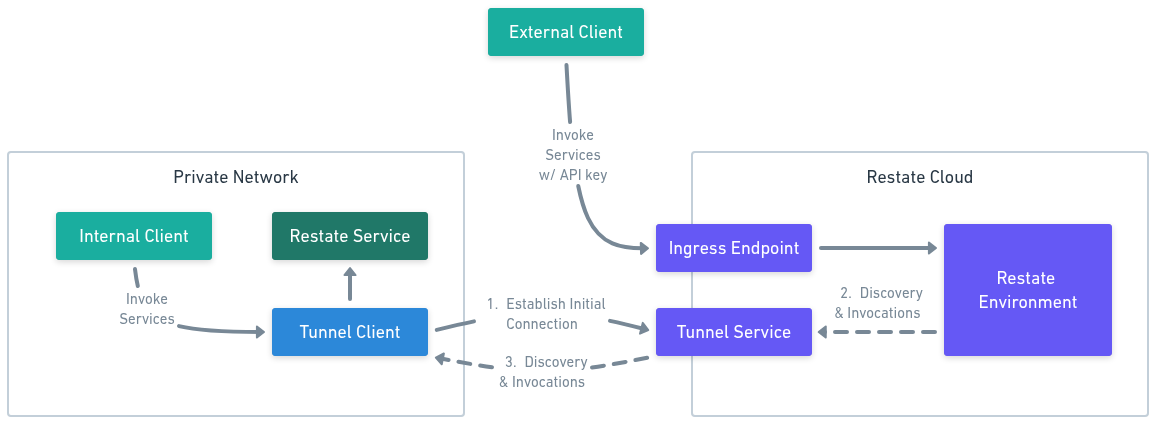

How does the tunnel work

• Restate CLI is communicating with your Restate environment at https://*.eu.restate.cloud:9070 using your user ID token and asks the admin API to perform a discovery at the special tunnel URL.
• The Restate Cloud end of the tunnel receives the request from your environment and forwards the traffic to the tunnel container.
• The tunnel container is forwarding the traffic to the Restate service endpoint.

Advanced topics

Client-side encryption

You can optionally configure client-side encryption, which makes your data opaque to Restate Cloud. In this case, the SDK encrypts journal entries after serializing them but before sending them to Restate Cloud.

What is encrypted? Only the following journal entries are encrypted:

• The input and output parameters to the handler
• ctx.run success results
• RPC calls parameters and return values (for service-to-service invocations)
• State values
• Awakeables and Durable Promise results

It is not possible to encrypt any other journal entries.

How to enable encryption? You need to implement a JournalValueCodec and provide it to the SDK when creating the endpoint. Currently, this feature is only available in the TypeScript SDK.

Have a look at a reference implementation that uses Amazon’s KMS to manage encryption keys.
